How Much Do You Know About Metal Stampings?

60-70% of the world's steel is plate, most of which is stamped into finished products. The body, chassis, fuel tank and radiator sheet of automobiles, steam ladle of boilers, shell of containers, silicon steel sheet of iron core of motors and electric appliances are all stamping process. There are also a large number of stamping parts in products such as instruments, household appliances, bicycles, office machinery, and living utensils.

Compared with castings and forgings, stamping parts are thin, uniform, light and strong. Stamping can make workpieces with reinforcement, ribs, undulations or flanges that are difficult to manufacture by other methods to improve their rigidity. Due to the use of precision dies, the accuracy of workpieces can reach micron level, and with high repetition accuracy and consistent specifications, holes nests and tabs can be stamped out.

Cold stamped parts are generally no longer processed by cutting, or only a small amount of cutting is required. The precision and surface condition of hot stamped parts are lower than those of cold stamped parts, but they are still better than castings and forgings, and the cutting process is less.

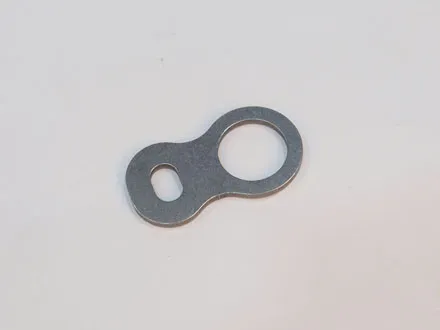

Metal Stamping Gasket

Stamping is a highly efficient production method. By using compound die, especially multi-station progressive die, multiple stamping processes can be completed on one press, and fully automatic production from uncoiling, leveling, punching and cutting to forming and finishing can be realized. With high production efficiency, good labor conditions and low production cost, it can generally produce hundreds of pieces per minute.

Stamping is mainly classified by process, which can be divided into two categories: separation process and forming process. The purpose of the separation process, also called punching, is to separate the stamped parts from the sheet along a certain contour line and to ensure the quality of the separated section. The surface and inherent properties of the stamped sheet have a great influence on the quality of the finished stamped product. The stamped material is required to be of precise and uniform thickness; to have a smooth surface without spots, scars, abrasions, surface cracks, etc.; to have uniform yield strength without obvious directionality; to have high uniform elongation; to have low flexural strength ratio; and to have low work hardening.

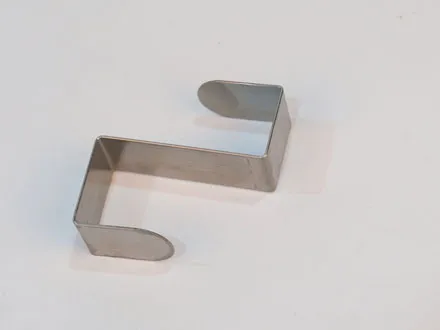

Stainless Steel S Shaped Hook

Main features

Stamped parts are mainly made of metal or non-metal sheets, which are stamped and shaped with the help of press pressure, and have the following characteristics:

(1) Stamped parts are manufactured by stamping on the premise that the material is not consumed much. The parts are light in weight and have good stiffness, and after the plastic deformation of the sheet, the internal organization of the metal is improved, so that the strength of the stamped parts is increased.

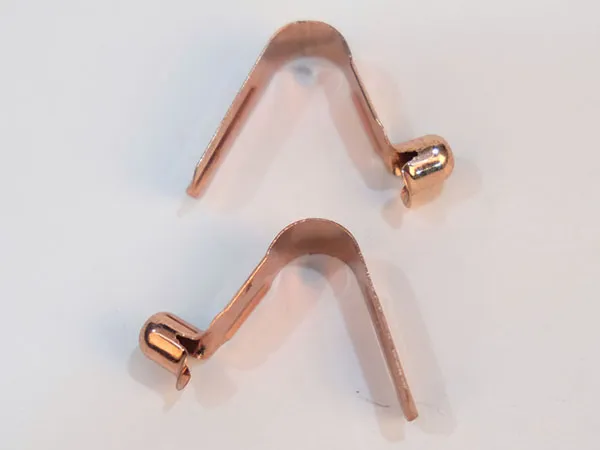

V Shape Spring Clip

(2) Stamped parts have high dimensional accuracy, uniform size of parts with the same die, and good interchangeability. It can meet the general assembly and use requirements without further mechanical processing.

(3) stamping parts in the stamping process, because the surface of the material is not damaged, so there is a good surface quality, smooth and beautiful appearance, which provides convenient conditions for surface painting, electroplating, phosphating and other surface treatment.
